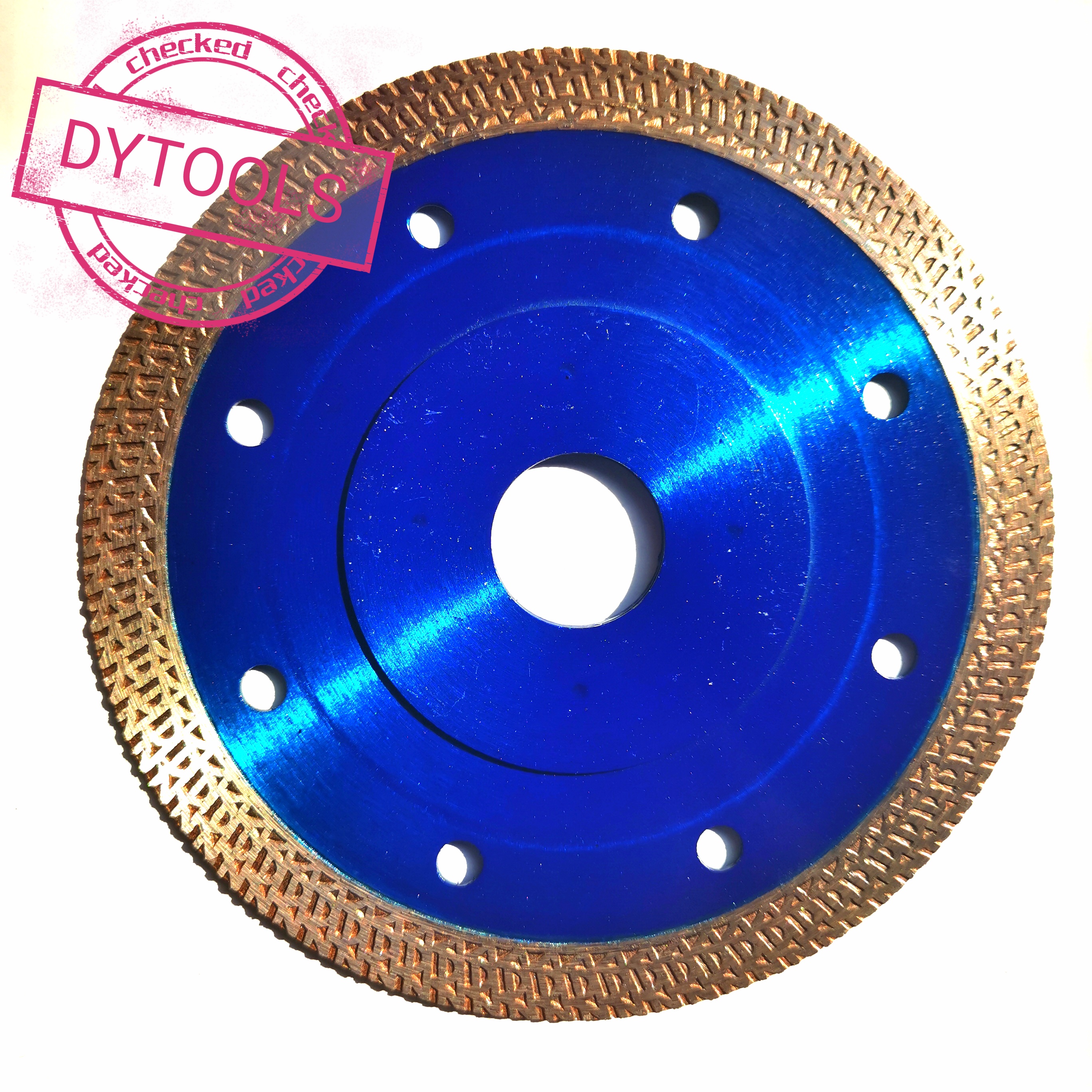

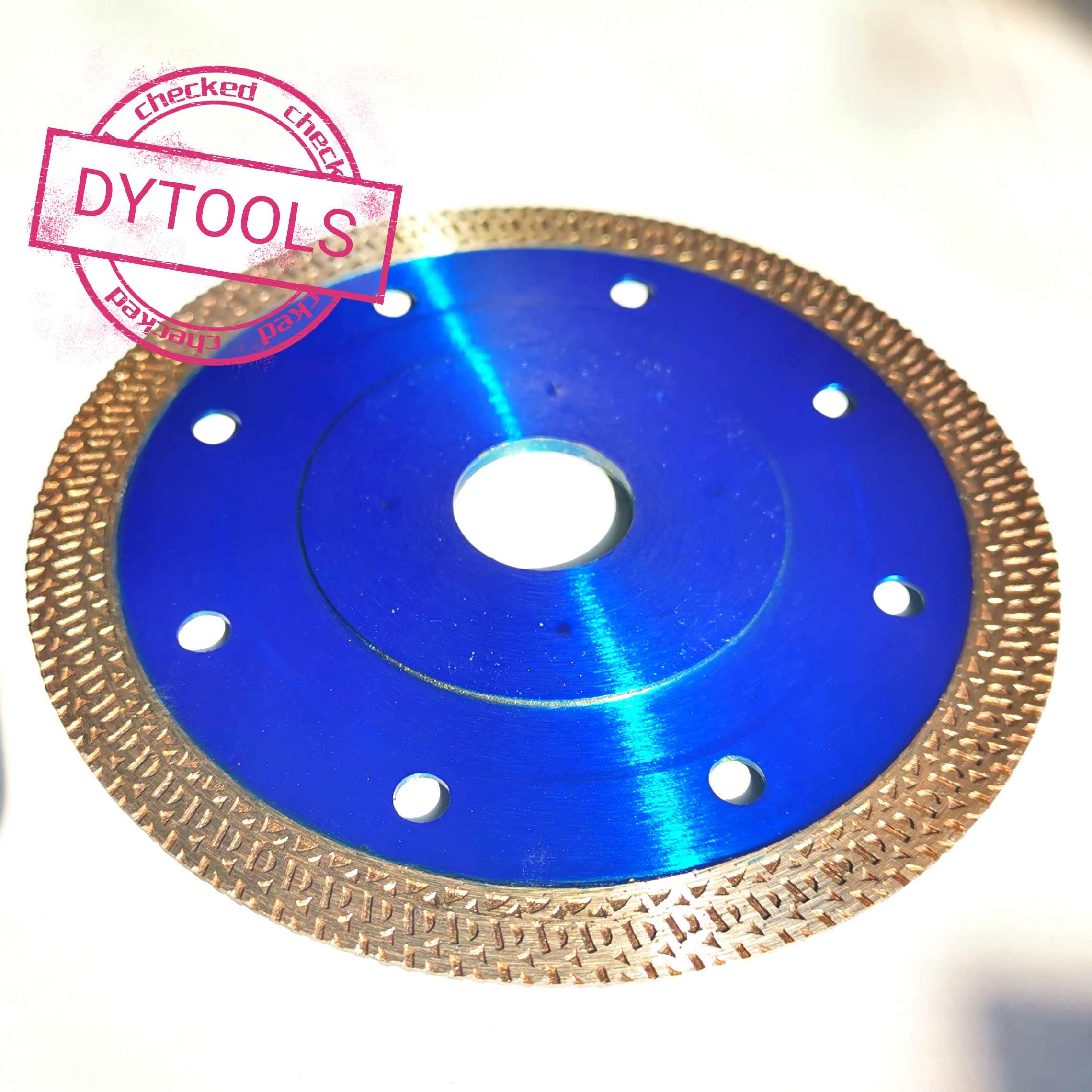

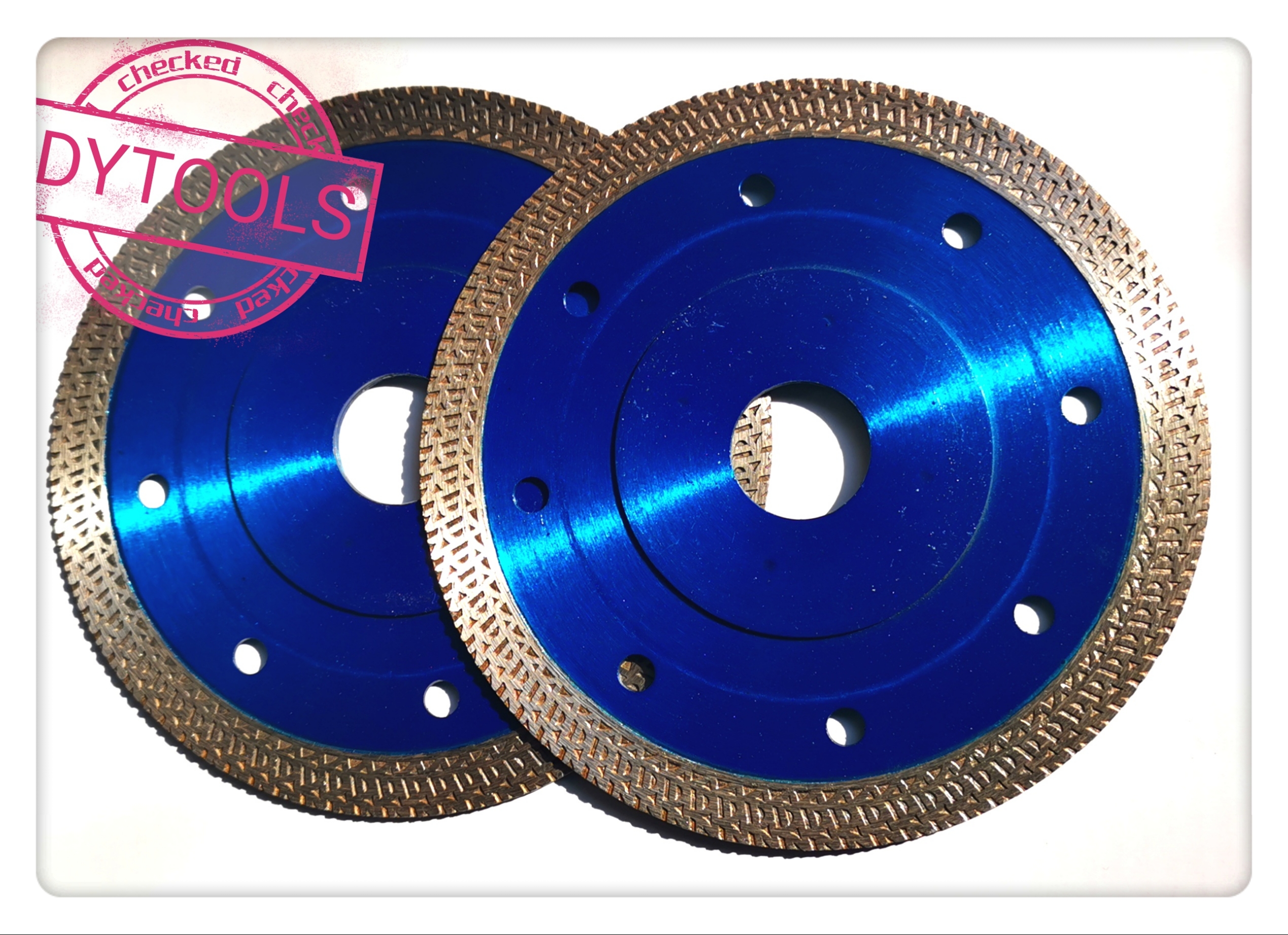

Professional Porcelain Tiles Diamond Cutting Blade

PRODUCTS RANGE: Hand Tools
Pliers Hammers Screwdriver Wrenches Clamps Vices Wood working tools Cutting tools Measuring tools Plumbing tools; PTA
Cutting Drilling Grinding; Healthcare
Gloves Mask Body building apparatus; Medical Device
Oxygen regulator/Inhalator Medical flow meter Nebulizer Suction Oxygen concentrator; Hardware
Handle Hooks Shelf; Garden Tools
Garden Assortment; Painting Tools; Others

 HOME>>PRODUCTS>>PTA>>Cutting>>Ceramic Tiles

Product description:

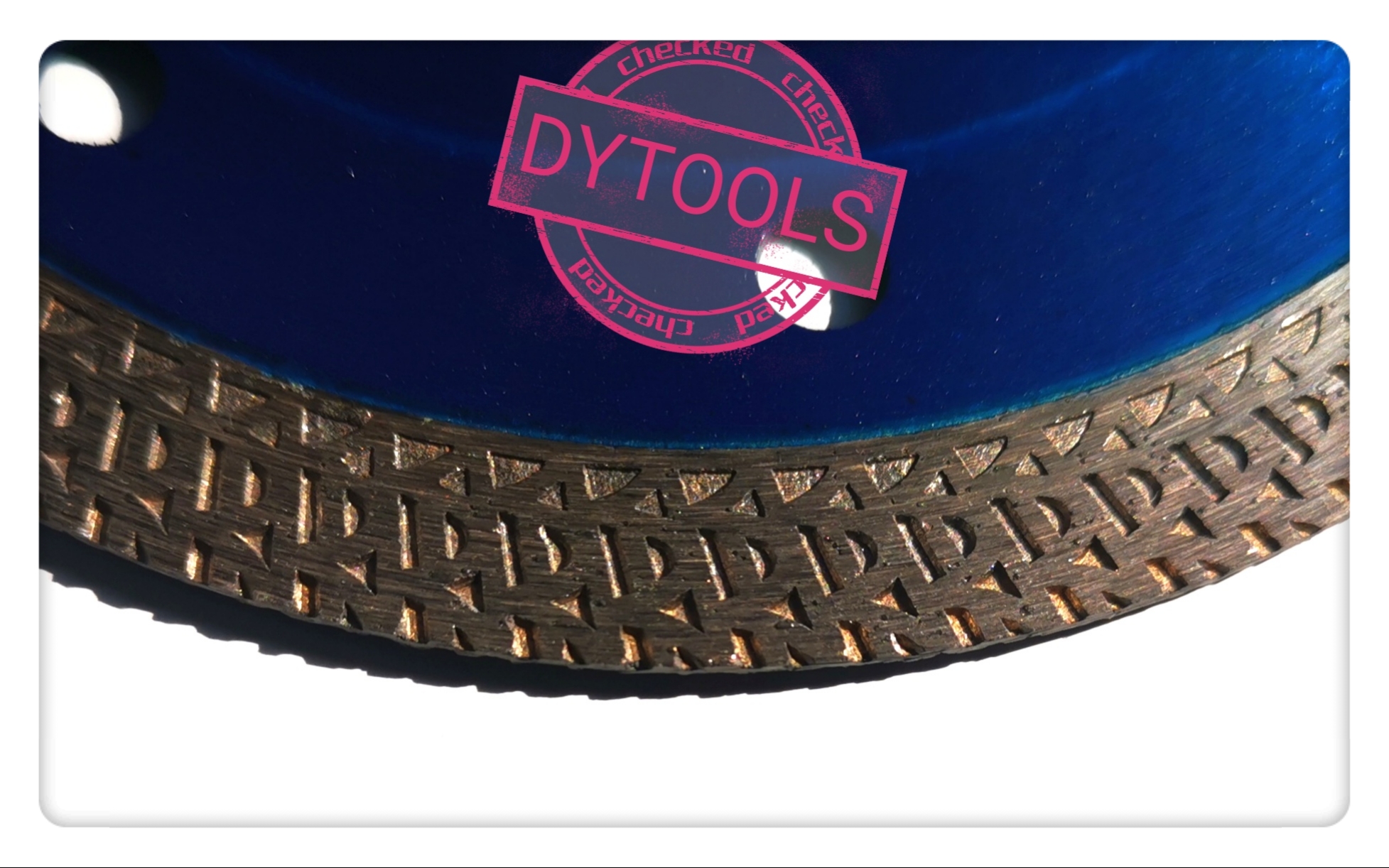

Special Y segments design with fine top diamond for tile/ceramic/porcelain professional cutting. Super thin thickness brings fast and smooth cutting and save cutting material. No chipping. No waste. Offer you the best cutting experience.

Product Details

Features:

HIGH EFFICIENCY, SHARP CUTTING, ENVIRONMENT FRIENDLY.
1. Top fine diamond bring fast and smooth cutting, 25% up.
2. Special Y segments design offer you no chipping cutting, 30% cuttting speed up.
3. Steel Flange bring more stronger and longer working life.
4. Sizes available from 100mm to 350mm
5. Customized sizes are available, Logo engraving is available

Specification:

Part No.	Diameter	Arbor hole	Segment Thickness	Segment Height
DY-ST-105	4" / 105mm	7/8" or with flange	1.2mm	10mm
DY-ST-115	4.5" / 115mm	7/8"or with flange	1.4mm	10mm
DY-ST-125	5" / 125mm	7/8"or with flange	1.4mm	10mm
DY-ST-180	7" / 180mm	7/8"or with flange	1.6mm	10mm
DY-ST-230	9" / 230mm	7/8"or with flange	2.0mm	10mm
DY-ST-250	10" / 250mm	1"/ 7/8" or with flange	2.2mm	10mm
DY-ST-300	12" / 300mm	1"/ 20mm or with flange	2.4mm	10mm
DY-ST-350	14" / 350mm	1"/ 20mm or with flange	2.6mm	10mm

MACHINERY:

Hand grinder, hand saw.
